TRIO.BAS™
MINI

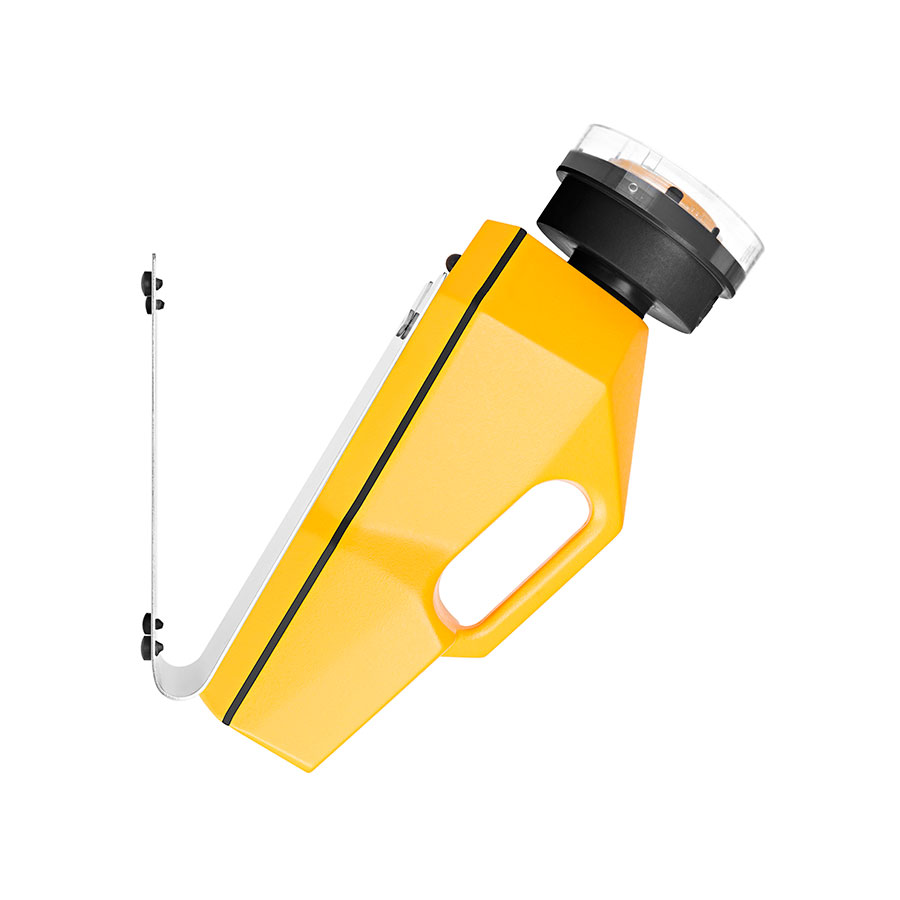

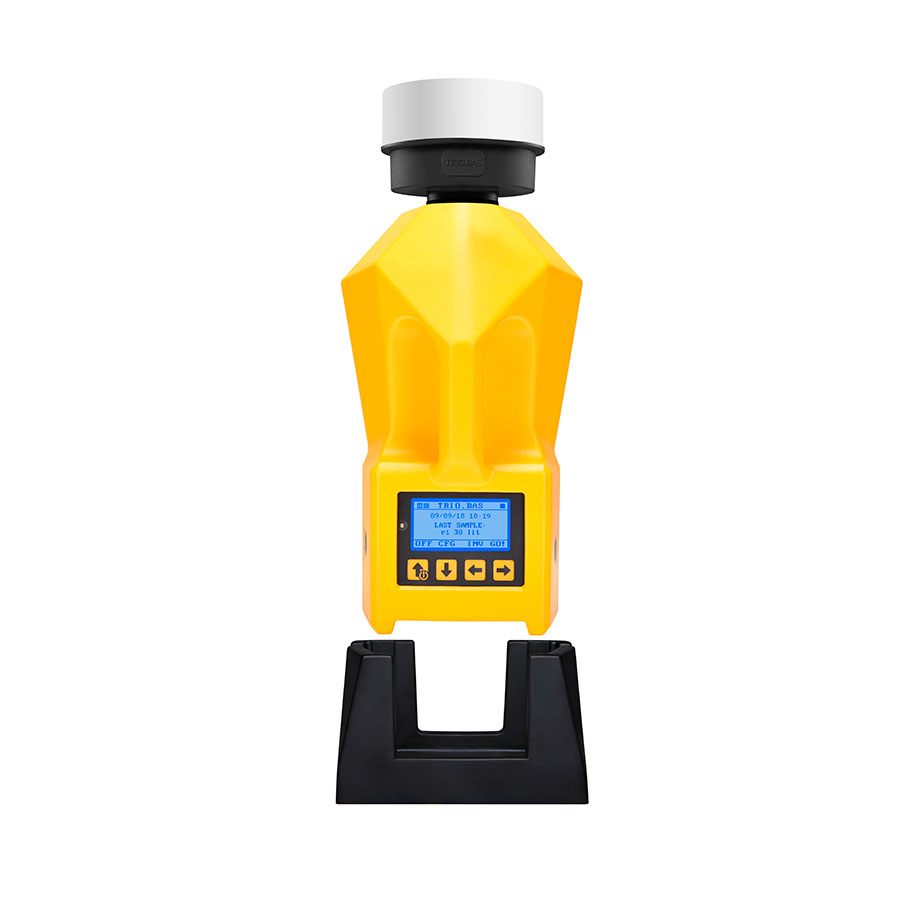

STAND UP HOLDER FOR MINI

Completely made in high density impact resistant techno-polymer. The shaped base allows the vertical positioning of the air sampler with the use of just one hand.

They can be positioned in any work surface or on all tripods and MINI multi holder chart with wheels. The stand up fixed on vertical tripod lets the air sampler be independent from the vertical tripod for charging the battery or removing the plates for sampling, facilitating the handling operations.

ID PACK CODE

VERTICAL HOOK HOLDER FOR MONO, DUO, TRIO

The shaped base allows the vertical positioning of the air sampler with the use of just one hand. It can be positioned on any work surface or can be fixed on all tripods and MAXI multi holder cart with wheels. Fixed on vertical tripod, the stand allows the air sampler to be independent from the vertical tripod for charging the battery or removing the plates for sampling.

ID PACK CODE

WALL/TABLE HOLDER FOR MINI, MONO, DUO, TRIO

It can be positioned on any work surface or can be fixed onto a wall to keep the air sampler in the same direction of the air coming out from conditioned port.

ID PACK CODE

MINI MULTI HOLDER CART ON WHEELS

This cart is suitable ideally for cleanrooms.

It is robust and is easily used with an air sampler fixed on it. It is equipped with 2 shelves.

It is suitable for sampling at a medium height. Optional: stand up holder for TRIO.BAS MINI (code 370), stand up holder for TRIO.BAS MONO, DUO, TRIO (code 376) or stand up holder for AIRBIO (code 377).

ID PACK CODE

MAXI MULTI HOLDER CART ON WHEELS

This cart is suitable mostly for cleanrooms. Adjustable height from 100 cm to 210 cm A fixed vertical hook and a vertical extensible support with ball joint are included with the cart It is robust and is easily used with an air sampler fixed on it.

It is equipped with 2 shelves. It is suitable for sampling at a medium height from the floor. Optional: stand up holder for TRIO.BAS MINI (code 370), stand up holder for TRIO.BAS MONO, DUO, TRIO (code 376) or stand up holder for AIRBIO (code 377).

ID PACK CODE

MAXI FLOOR TRIPOD

Transportable and compact, the MAXI TRIPOD is an innovative floor tripod. Made from light weight aluminum.

• It is particularly useful for sampling with TRIO.BAS air sampler at medium and high height from the floor
• Adjustable height from min.125 cm to max 366 cm
• The air sampler can be fixed directly on the tripod or alternatively on a STAND UP holder (optional) fixed on the tripod. This solution facilitates the operator's activity as the sampler can be inserted and removed from the tripod with one hand and without the constraint of screwing or unscrewing the instrument
• Compact 4 section stand with 3 risers
• Smooth cushioning of tube movement when the tripod is raised or lowered protects your fingers
• The wide bases opens up to 107cm to keep the tripod steady

ID PACK CODE

CLEANROOM BAG

Sterile bags ideal for safely containing and transporting Petri dishes, Contact plates, Swabs, or other objects, outside of the cleanroom:

• Sterility Traceability
• Triple-wrapped and individually sealed to ensure sterility
• Beta or Gamma sterilization certificate available
• Color is easy to identify in the cleanroom
• Write-on oversized area to identify sample contents suitable for use with permanent markers
• Self-adhesive flap closure prevents contamination after samples are placed inside of the bag
• Included an easy-open thear line which guarantees the sterility of the single bag
• The elongated, flat bag design facilitates stacking of multiple bags, easy reading of bag contents, and allows plate lids to stay secured inside the bag during handling

ID PACK CODE

IQ, OQ, PQ DOCUMENTS

IQ installation qualification; OQ operational qualification; PQ performance qualification

In the pharmaceutical industry, accurate measurements are vital. Even slight errors can result in dangerous and potentially deadly consequences. This is why reliable equipment validation is so critical in the pharmaceutical industry. IQ OQ PQ represents a way to help ensure reliable performance for equipment for pharmaceutical industry purposes.

IQ, OQ and PQ stand for installation qualification, operational qualification and performance qualification, respectively. They represent quality assurance protocols for each phase of the manufacturing process for pharmaceutical equipment. Since the pharmaceutical industry is heavily regulated by the FDA, it is essential to follow IQ, OQ and PQ protocols.

These Documents have the target to verify that the instrument is working according to the supplier specification, during the installation and during the working activities.

METHOD

Read the pages of the document

ACCEPTANCE CRITERIA

Each pages of this document is based on a specific criterion that should be followed

HOW TO USE THE DOCUMENT

These Documents have the target to verify that the instrument is working according to the supplier specification, during the installation and during the working activities.

• Do the actions described in the pages of this Document
• Answer YES or NO to the questions present in each page
• Insert comments and corrective actions where they are applicable
• Date and sign each page when it has been completed
• Record the results each time a page of the Document has been completed
• Sign, date and register the document once it is fully completed

ID PACK CODE

IN-REST HOLDER

Operators, and their activities, represent the greatest risk of contamination inside cleanrooms. Operators must work under stringent conditions; required to wear special overalls, gloves, facemasks, and eye masks. For these reasons, it is advisable to create the best possible working conditions. Air sampling with microbiological samplers is a complex and delicate operation, whether using an instrument with a single aspirating head, or an instrument with more than one aspirating head. To facilitate operations and avoid errors and risks of contamination during the sampling phase, the TRIO.BAS IN-REST is particularly useful as a temporary support for culture media plates and/or lids, and instrument sampling heads.

FEATURES

• Built in AISI 316 stainless steel
• Wedge shape inclined at 150°
• Two-sided Support
• Usable for Petri dishes, Contact plates and aspirating heads
• A single hole on one side, and two holes on the other side, facilitate identification of plates and heads

ID PACK CODE

GLP EASY RACK

Cleanroom Stainless Steel Rack with handle for stacking, storing, and transporting culture plates (Petri or Contact plate). They are used to maintain the distance inside the incubator according the GLP* (Good Laboratory Practice).

DETAILS

• They can be refrigerated, incubated and autoclaved
• Each rack can hold up to 11 Petri dishes, or 15 Contact plates
• A wide front opening permits easy access but prevents dishes from sliding out
• The same rack can be adjusted for Petri or Contact plate
• Avoids all risk of accident during loading and transport to the incubator for staff bio-hazard safety
• The weight of only 280 gr. make it light and easy to carry
• The small size allows to maximize the space inside the incubator
• Racks are fully autoclavable

*ISO Standard and GPL request that inside the incubator the culture plates are stacked not more than six and at a distance of 2 cm.

ID PACK CODE

LIGHT CARRYING CASE

These Carrying cases have very performing characteristics. This allows the instruments to be safely contained both for transport by customers when they have to carry out tests in different environments.

They are also indispensable when they must be sent to accredited assistance centers to carry out repairs or calibration - Easy to open double throw latches - foam inlays to protect the instrument.

Made in polypropylene copolymer - Thick body material.

ID PACK CODE

STERILE DAILY SHIFT ASPIRATING HEAD FOR CONTACT PLATE

The sterile Daily Shift aspirating heads (DSH - sterile Daily Shift Head) avoid the sterilization process necessary for stainless steel aspirating heads.

The sterilization is proven by an official certificate. This document is requested by regulatory authorities.

The triple irradiated sterile packaging allows the users to always have aspirating heads ready for use.

ID PACK CODE

STERILE DAILY SHIFT ASPIRATING HEAD FOR PETRI

The sterile Daily Shift aspirating heads (DSH - sterile Daily Shift Head) avoid the sterilization process necessary for stainless steel aspirating heads.

The sterilization is proven by an official certificate. This document is requested by regulatory authorities.

The triple irradiated sterile packaging allows the users to always have aspirating heads ready for use.

ID PACK CODE
